Dual-Band Operation:They support both 2.4GHz and 5GHz WiFi frequencies, allowing for flexible connections and optimized performance.
-
Extended WiFi Coverage:These devices are designed to amplify and extend the range of existing WiFi networks, eliminating dead spots and improving signal strength in larger areas.
-
Multiple Modes:Many COMFAST 1200Mbps devices offer multiple operating modes, such as repeater, access point, and router modes, providing flexibility for different network setups.
-
Easy Setup:They often include user-friendly interfaces and features like WPS (Wi-Fi Protected Setup) for simple and quick installation.
-
High-Gain Antennas:Some models come with high-gain antennas to further enhance signal strength and coverage.
-
Compatibility:They are generally compatible with most standard WiFi routers and devices.
-
Smart LED Indicators:Many models feature smart LED indicators that help users identify the optimal placement for the device to maximize coverage and performance.
Connect to the new wireless network you’ve named with the password you’ve set.
* Interface
– 1 micro USB port for power supply
– 1 SIM card slot
* Button: Power Button, Reset Button
* Power Supply
– Internal 2000 mAh Rechargeable Battery
– External 5V/1A
* Network Type
– 4G: FDD-LTE B1/B3/B5/B7/B8/B20(2100/1800/850/2600/900/800 MHz)
– 4G TDD-LTE B38/B40/B41 (2600/2300/2500 MHz)
– 3G: HSPA+/HSPA/UMTS: B1/B5/B8(2100/850/900 MHz
* Wireless Standards- IEEE 802.11b/g/n
* Wireless Speeds- Up to 300 Mbps
* Frequency- 2.4 GHz
* Reception Sensitivity
– 11b 11Mbps: -87.5dBm;
– 11g 54Mbps: -74dBm;
– 11n HT20 MCS7: -70dBm;
– 11n HT40 MCS7: -68dBm;
* Transmit Power: <20dBm
* Wireless Security: Support WPA-PSK/WPA2-PSK,Wireless MAC Filtering, Enable/Disable SSID Broadcast
* DHCP: Server, Client, DHCP Client List
* Data Rates: DL: 150 Mbps, UL: 50 Mbps
* Dimensions ( W x D x H ): 3.7×2.2×0.8 in. (94×56.7×19.8 mm)
* Antenna: Internal Antennas
* LED Display: Wi-Fi status, Internet connection status, Battery status

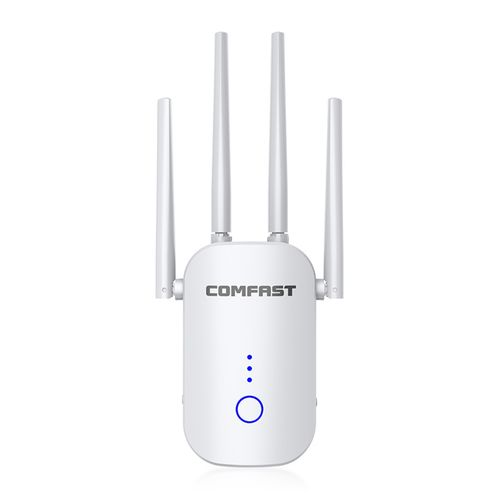

1. Brand model: Comfast CF-WR754AC
2. Interface: 2X 10/100Mbps WAN /LAN Ports
3. Button: WPS button / On & Off / Reset / Function selection button (AP Repeater or Router)
4. Wired transfer rate: 10/100Mbps
5. Wi-Fi transmission speed: 1200Mbps
6. Standards and protocols: Wi-Fi 802.11g, Wi-Fi 802.11n, Wi-Fi 802.11b.Wi-fi 802.11ac.
7. Wi-Fi supported frequency: 2.4G & 5G
8. 2.4G Wi-Fi transmission rate: 300 Mbps
9. 5G Wi-Fi transmission rate: 867Mbps
10. Item weight: 260g
11. Dimensions(LXWxH): 6.5 x 5.1 x 1inches / 16.5×5.1×2.6cm
12. Plug specification: US plug / EU plug / UK AU Adapter
